Secure Edge Node D35
Modular compute hardware that's secure and easily customized.
+ Fully enclosed, tamper responsive
+ Secure compute module, Linux OS
+ Hardware security supervisor
+ Motherboard, extensive IO
+ Accessories
+ Enclosure
+ Pre-configured security and software
Secure Edge Node D35
Modular compute hardware that's secure and easily customized.
+ Secure compute module
+ Motherboard
+ Accessories
+ Enclosure
+ Pre-configured security and software
The Secure Modular Compute Platform
Engineered for a lifetime of reliable operation in zero trust environments.
Platform Overview
Integrated Secure Compute Module
- Hardware secured compute module
- Verified boot, encrypted file system
- Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
- Dedicated cryptographic engine
- Optional hardware HD wallet
- Fully encapsulated security hardware
Motherboard with Expansion I/O
Secure Side
Fixed functionality
- Zymbit Secure Compute Module socket
- 25W power supply, 12VDC barrel jack input
- 1G Ethernet, USB2 x 2, HDMI
- Optional Zymbit HSM6 socket
- Optional fan
- Secure enclosure ready
User Side
Designed to be easily customized.

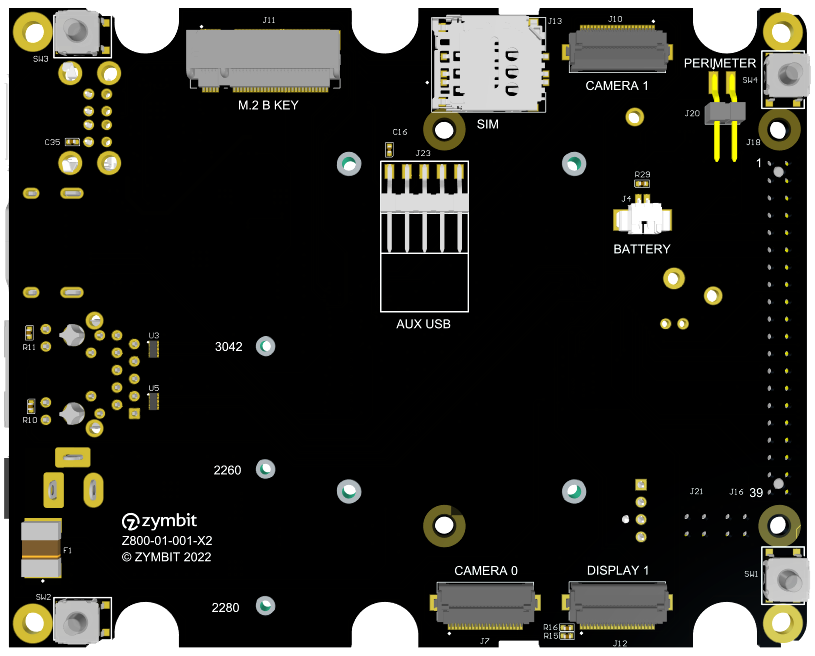

- M.2 socket (key B) socket and micro-SIM cardholder
- Supports M.2 B/B+M key 2242, 2260, 2280 NVMe SSD
- Supports M.2 B key 3042 format LTE modems
- Auxiliary back up battery
- Auxiliary tamper circuit
- MIPI CSI Camera x2, DSI Display x1
- Integrated tamper switches x4
Accessories
Customize your secure compute platform with a wide range of Zymbit and third party hardware accessories.
Zymbit acessories

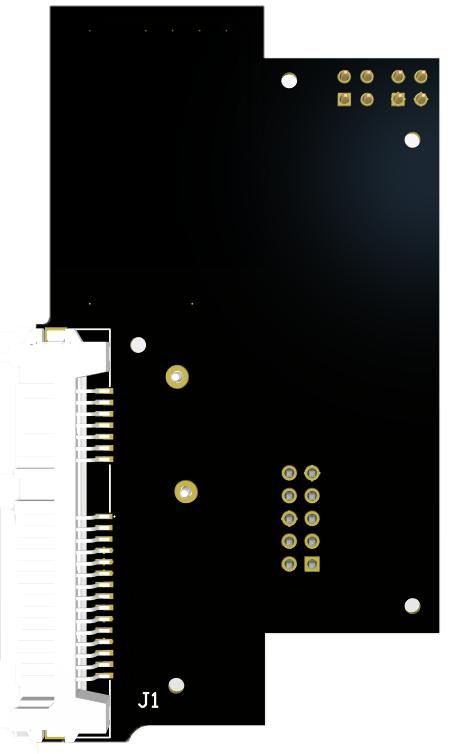

- SATA power board, rear connection

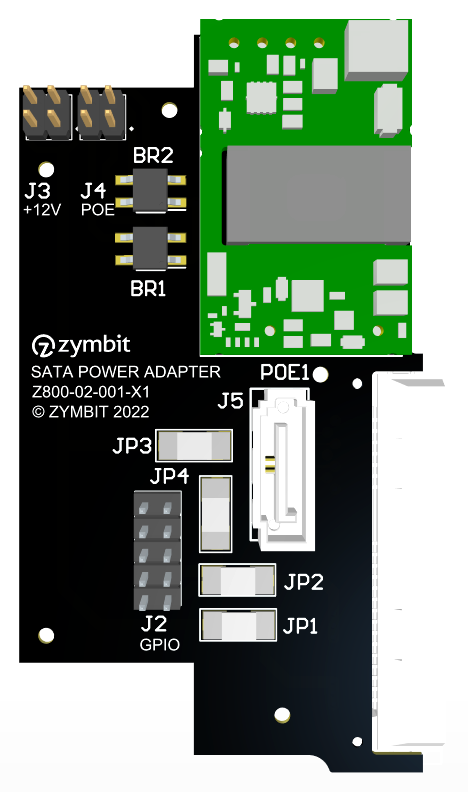

- POE power module, ethernet connection
Third party accessories
- SSD M.2 drives

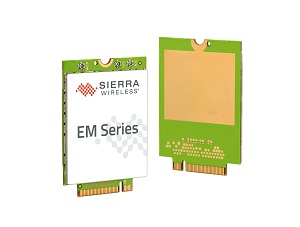

- Cellular modems & services
- Cameras
- Industrial IO and relay boards
- Displays
Tough Expandable Enclosure

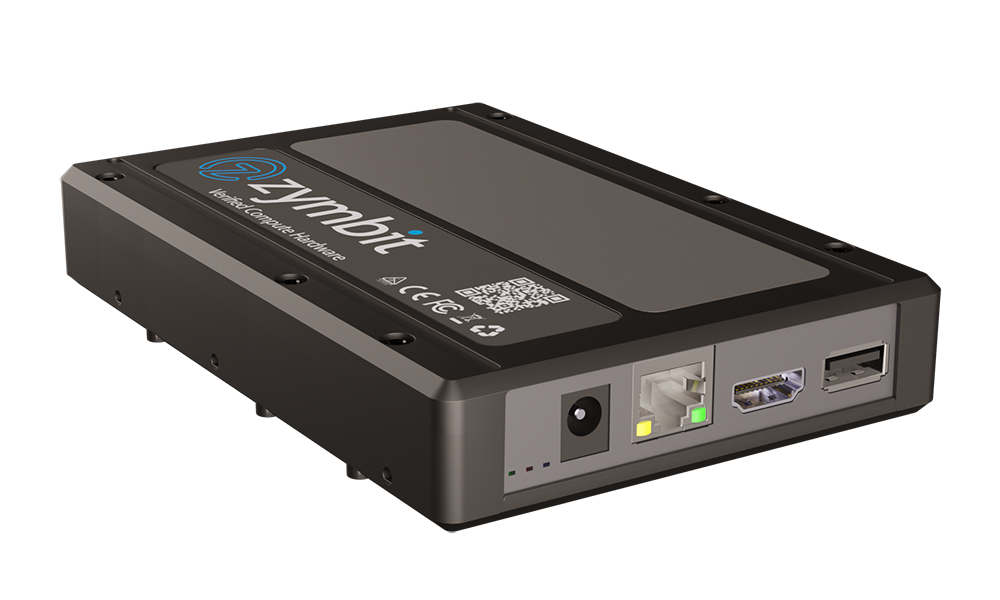

Zymbit offers a standard enclosure that accommodates Zymbit’s SCM, motherboard, and a choice of accessories.
Standard Type D35 Enclosure
- Rugged plastic and metal construction
- Tamper switch compatible
- Integrated heatsink
- Customizable front connector plate
- Stackable
- 26.7 x 100.3 x 148 mm, 1.05 x 3.96 x 5.80 Inches
- Fit into standard 3.5″ drive bay caddy
- Optional SATA power connector
- Optional POE module
Custom Features
- User cover is easily modified to include customer-specific designs
- Mechanical interface CAD files available
- Options User Cover with SATA power support
Full Custom Enclosures
Pre Configured Software & Security Profiles
To simplify your life, Zymbit secure compute nodes can be shipped with a choice of pre-configured OS, application software and security policies that align with your product development stage. OEM and solution specific builds are also available.
Develop
- Optimized for maximum development flexibility
- Standard OS builds & tools
- Partially encrypted file system
- Relaxed security policies, open ports
Secure
- Defined security policies enabled
- Optimized OS build
- Fully encrypted file system
- Verified boot enabled
- Finalize configuration with Security Sanitization Guide and Scripts.
Deploy
- Customer-specific configurations loaded, tested, deployed.
- Standard zymbit curated configurations available.
Specifications
| Highlights | Secure edge compute node with Linux CPU Powerful RPi4 compute module, quad core A72 Integrated Zymbit hardware security module Extensive security and key management features Bootware™ and Tamperware support |
| Secure Enclosure | Tamper responsive, multiple tamper sensors. D35 size envelope, fits into standard 3.5″ drive bay caddy |
| Dimensions | 26.7 x 100.3 x 148 mm 1.05 x 3.96 x 5.80 Inches |
| Weight | 8.2 oz, 230 g - 12VDC power, standard 9.2 oz, 260 g - POE/SATA power, option |
| Power |
Standard* - 12VDC, 3A power, barrel jack, center positive, 2.1mm I.D. x 5.5mm O.D. x 11.0mm Optional* - POE, internal module, connect via Gigabit Ethernet, front face * specify at time of ordering |
| External Interfaces, Connectors |
1 x HDMI 1 x USB 2.0, Type A 1 x Gigabit Ethernet, IEEE 1588 precision time protocol, optional POE support* * specify at time of ordering |
| External Indicators |
SCM Power (red) SCM Activity (green) SCM Status (blue) |
| Internal Interfaces, Connectors |
1x AUX USB 2.0, header 2x CSI Camera 1x DSI Display 1x 40-pin GPIO header 1x M.2 B-Key 1x Micro SIM port. For use with compatible M.2 modules. Push-push type connector 1x Battery connector, Molex 51021-0200-B (1.25mm Pitch) 1x Zymbit secondary HSM4/HSM6 security module, Zymbit. 1x 5V Fan |
| Compute Resources | Pi Compute Module 4 Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode) OpenGL ES 3.1, Vulkan 1.0 Up to 8GB LPDDR4-3200 SDRAM Up to 32GB eMMC Flash memory * different configurations available for OEM quantities |
| Operating System, Kernel | Linux, Raspberry PiOS 64bit* * other Debian distributions available for OEM quantities |
| Software API | Python, C++, C |
| Hardware Security Module | Zymbit Hardware Security Supervisor Cryptographically and physically bonded to Compute Module Dedicated |
| Measured system identity & authentication | Standard factors include RPI host, Zymbit HSM, eMMC memory OEM factors available with engineered services |
| Tamper Sensors | 2 x Perimeter breach detection circuits* Accelerometer shock & orientation sensor Main power monitor Battery power monitor Battery removal monitor * one assigned to enclosure switches, one to user, |
| Data encryption & signing examples. | Encrypt root file system with dm-crypt, with LUKS key manager hook Encrypt data blobs with "zblock" function Encrypt data in flight with OpenSSL integration |
| Cryptographic Services | ECC KOBLITZ P-256 (secp256k1) ED25519, X25519 ECDH (FIPS SP800-56A) TRNG (NIST SP800-22) ECC NIST P-256 (secp256r1) ECDSA (FIPS186-3) AES-256 (FIPS 197) |
| Example Cipher Suites | AWS-IOT | TLS_ECDHE_ECDSA_AES256_SHA MS-AZURE | TLS_ECDHE_ECDSA_AES_128_GCM_SHA256_P256 |
| Private / public key pairs | 512 |
| Foreign public keys | 128 |
| Wallet Functions | BIP 32 - hierarchical deterministic wallet BIP 39 - master seed mnemonic generator SLIP 39 - with shamir's secret sharing BIP 44 - mulit-account support |
| Real time clock | 36-60 months operation with external CR2032, application dependent, 5ppm accuracy. |
| Backup battery | Used for RTC and perimeter circuits Under-module battery connector pads, to any 3V source on motherboard Optional under module battery holder, for CR2412 coin cell * * requires motherboard connector height 3.0mm |
| Backup battery monitor | Yes |
| Last Gasp battery removal detection | Yes |
| Warranty | 18 months |
| Accessories & related products | Developer Kit |
| OEM Custom features | Contact Zymbit |
